Stainless Steel Filler Wire

316 / 316H

DESCRIPTION : SUPER MIG 316/316H is a G 19 12 3 H type solid MIG welding wire, supplied precision layer wound are widely designed for welding of 316/316H austenitic stainless steels operating at high temperatures (500-800°C) under long term creep conditions. SUPER MIG 316/316H is a modified 316H weld metal composition to resist thermal embrittlement which can also be used for welding 321/321H and 347/347H grades in high temperature structural service. It is important in thick highly restrained weldments, since the possibility of premature service failure by intergranular HAZ cracking is reduced by using more ductile weld metal rather than 347H. SUPER MIG 316/316H is mainly used for welding steam piping, superheater headers, furnace parts, some gas and steam engine turbine components, in the petro-chemical industry and nuclear fuelled power stations.


SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)


FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2  Elongation A5(%) Impact Energy ISO-V(J) 20° C Welding Conditions
SUPERMIG 316/316H AWS A5.9: ER 316/316H EN ISO 14343-A: G 19 12 3 H ≥ 500  ≥ 650    ≥ 30   ≥ 80 DC+

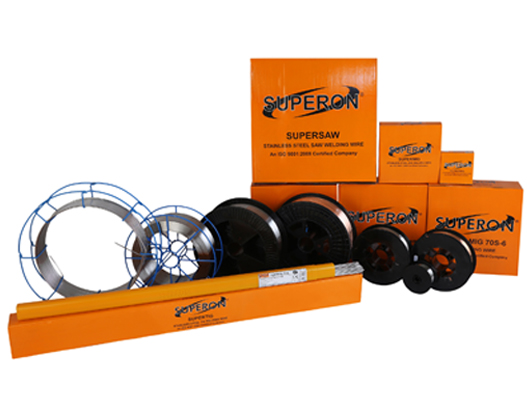

SD 300 / BS 300  11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool.
SD 200  4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool.
SD 100 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool.
Mig Wire in Drum In Drums of 100-250 Kgs (200-550 Lbs)
