SUPER OPTIMAL 2594-15
For Plastic Tube pack, the outer pack weight will be same as vac & normal pack
For lbs packing :- 2kg :- 5 Lbs, and 5Kg :- 10Lbs, 10kg :- 20Lbs, 20kg :- 40Lbs
For 2kg = 2x5=10kg
For 5kg = 5x4=20kg
![](../../../productimage/db27d3f1dcf1cfe56367a3e2a327e9ac.jpg)
Product Name | AWS/SFA | Yield Strength N/mm2 | Tensile Strength N/mm2 | Elongation A5(%) | Impact VJ+20◦C | Welding Conditions | Unique Feature (All Vacuum Packed) |
---|---|---|---|---|---|---|---|
SUPER OPTIMAL 2594-15 | E2594-15 | ≥650 | ≥760 | ≥20 | ≥60 | DC(+) | Basic Coated 25-10-4-N type electrode for the welding of type 2507 super-duplex stainless steels UNS S32750 (wrought) and UNS J93404 (cast) and similar compositions. Excellent resistant to pitting and crevice corrosion (PREN >40). The deposited weld metal gives very high ductility down to -50°C. |
SUPER OPTIMAL 2594 | E2594-16 | >650 | >800 | >20 | ≥47 RT | AC;DC+ | Super-duplex stainless steels. Excellent resistant to pitting and crevice corrosion. Excellent weldability, spatter free arc, very smooth bead appearance. |

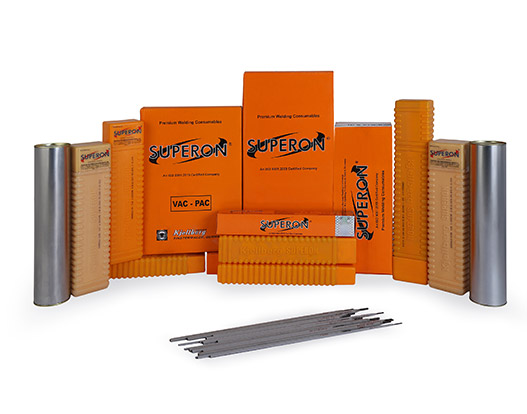

Packaging Details
Normal | Special Packing | |
Inner Packing | Outer Packing | |
2 & 5Kg Vac Pack | 10 & 20Kg | 2Kg/5Kg Plastic Tube |
