Electrical MRO

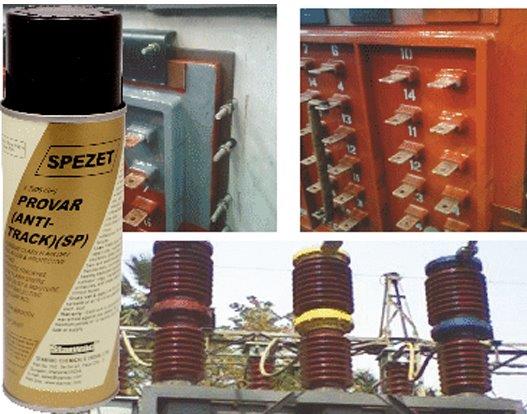

#Z906 Provar Anti-track (SP) - Prevents Tracking & Provides Insitu LR Value Upgradation

Class H high gloss, high dielectric strength, flexible tough epoxy anti- track coating with excellent resistance to abrasion, wear, oil, water acids & alkalis.


Restores “IR” values & prevents breakdowns



KEY APPLICATIONS AREAS :

Ceramic & epoxy insulators, bus-bars, bakelite sheets, junction box interiors, cable terminations.



IMPORTANT :

Z906 (HP) Anti Track Red Silicone Modified Version – For anti tracking With Superior Water & Dust Repellence

  • Ultra high hydrophobicity & UV, weathering durability.
  • Self cleaning effect. Water droplets can pick up dirt & remove contamination from coated insulator surfaces. Ideal for highly polluted, dusty & wet areas.
  • Contact angles >100° insitu easy application. Will not pickup dust like silicone greases.
  • Excellent anti-adhesion to contaminants - cement, coal, ash, etc.
  • Will effectively prevent arcing & flash overs on all types of insulators.

PACKING : 12 x 500ml /355gms Aerosol Sprays

KEY SPECIFICATIONS :

Thermal Class Di-electric Strength Useable / Cure time
H 2270 V/Mil Air Dries : 15 min.
Useable : 60 min.
Full cure : 24 hrs.
  a) Dielectric Strength at 28°C : 121Kv/mm O
b) Dielectric Strength at 180°C : 81 Kv/mm (still retains a smooth,glossy finish)
c) Breakdown Voltage : 5.7Kv (0.05 mm coating thickness)
