STANGARD INSULKOTE CLASS A & B DIELECTRIC FLOORING

Two component cyclo aliphatic curative epoxy system - 100% solids with di- electric fillers.

FEATURES :

• Self leveling, high gloss, seamless, dielectric flooring.
• Safer & longer lasting than rubber mats. Minimum 3-5 years.
• Pull off adhesion >600psi (concrete failure).
• Tough, wear & abrasion resistant.
• Enables improvement in both aesthetics & safety.
• Easy installation cleaning & repair. Provides clean dust-free atmosphere in panel rooms.

USP’S 1311 Insulkote Class A :

• Dielectric flooring, meeting BDV requirements of Class A as per IS 15652:2006>30 kv.
• Unique breakdown voltage In Air. >34KV for Class A .
• AC proof voltage : passes 11kv (rms) 3 minutes.

USP’S 1311 Insulkote Class B :

• Dielectricflooring,meetingBDVrequirementsofClassB asperIS 15652:2006>45 kv .
• Unique breakdown voltage in air >50KV for Class B
• AC proof voltage : passes 24kv (rms) 3 minutes.

KEY APPLICATION AREAS :

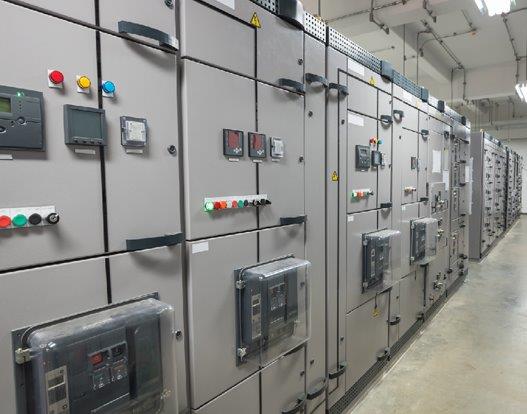

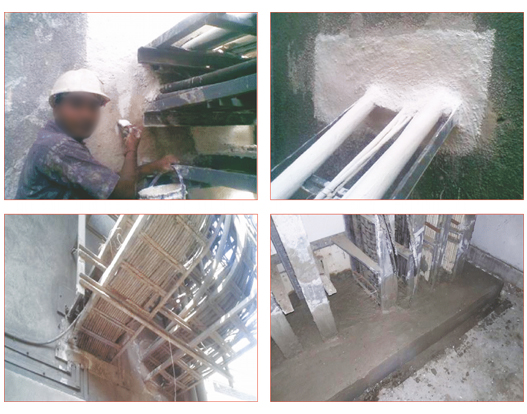

Di-electric flooring - control panel rooms, HT bus bar coating, Power transmission tower bases, etc.
