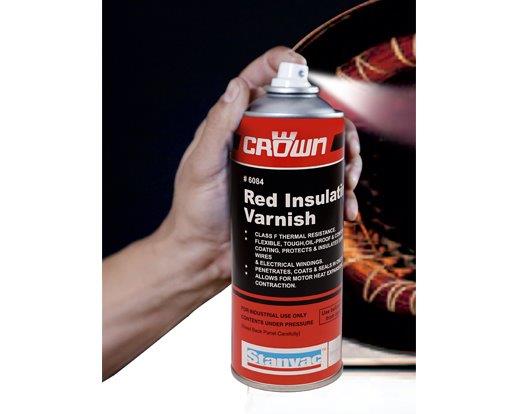

#6084 Red Insulating Varnish - Insitu Quick Insulation & IR Value Upgradation

Class F, flexible, tough, high dielectric strength arc & tracking resistant finishing electrical varnish.

Penetrates, coats, insulates & seals in one step. Restores “IR” values, “in-situ” allowing motor operation till a suitable shutdown.


Resists oil, water, acids & alkalis.


Enhances electrical equipment life spans, prevents failures breakdowns,& “IR” value droppages.

Open end covers & spray onto winding end turns - effective long term protection.



KEY APPLICATIONS AREAS :

Electric motors, coils, LT bus-bar, frayed insulation, LT & HT insulators, etc. anything that can be spray coated can be insulated & protected.



IMPORTANT : For the Best Enhancing or “IR” values, removal of already penetrated moisture (Via Heat Lamps / #8070 Electrical 88) is first necessary.



PACKING : 12 X 500ml /368gms Aerosol Sprays


ALSO AVAILABLE : SP98E10 Spraytex Epoxy Red Insulating Varnish. (PACKING : 12 X 400ml /320gms Aerosol Sprays)

KEY SPECIFICATIONS :

Thermal Class Di-electric Strength Useable / Cure time
F 2100 V/Mil Air Dries : 15 min.
Useable : 60 min.
Full cure : 24 hrs
  Dielectric Strength
a) in air at RT : 98Kv/mm
b) after immersion in water for 24 hrs : 58Kv/mm O
c) at 155°C :23Kv/mm
