DPT SET

SUPER SERIES – FLAWCHEK - Liquid Dye Penetrant Inspection System



KEY APPLICATIONS AREAS :

  • Will locate surface discontinuities or other indications on all non – porousmaterials (Metals, Plastics, Ceramics.):
    - Cracks
    - Seams
    - Porosity
    - Laps
    - Laminations
    - Cold Shuts
  • Used to detect welding, casting & forging defects, cracks & leaks in new – components and fatigue cracks on in – service components.
  • Will detect wide spectrum of flaw sizes regard less of flaw orientation, up to 1 microns to 30 micron depth on standard Ni – Cr test panel.
  • Superior capillary action, Non – Toxic, Non – Corrosive..... Free from halides & sulfides.
  • Confirms to MIL–1–25135, MILSTD 271, IS: 3658 – 1981“Code of practice for liquid penetrant flaw detection “.

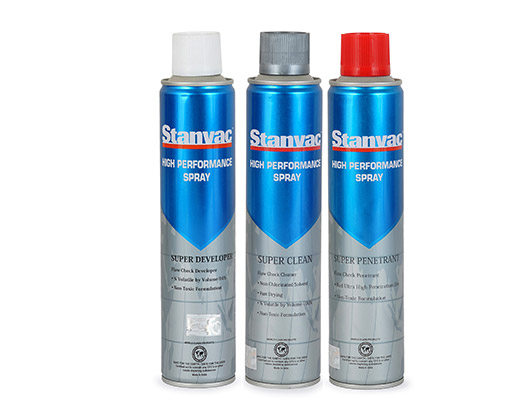

  • Three part system



SUPER CLEANER :

a) Non – Chlorinated solvent.

b) Fast drying.

c) % Volatile by volume – 100%.

d) Specific Gravity

e) Non – toxic formulation.



SUPER PENETRANT :

a) Red ultra high penetrationdie.

b) Specific Gravity

c) % Volatile by volume – NA

d) Non – toxic formulation.



SUPER DEVELOPER :

a) % Volatile by volume: 94%.

b) Specific Gravity

c) Vapour Pressure – 45-55 Psig.

d) Non-toxic formulation.



APPLICATION :

Evaluation of micro surface defects & flaws in weld deposits, wrought & cast products of both Ferrous &Non – Ferrous metals, powder metallurgy parts, ceramics, plastics & Glass objects. Perfect for examining Stress corrosion and Fatigue cracks – Cranes, Bridges, Vessels, Piping, Railway’s. So as to prevent breakdowns, injuries or loss of life.



PACKING : 350ML
