Carbon Steel Electrode

SUPER OPTIMAL 7018

USP’S :

  • Unique self-lifting slag
  • Excellent impact notch toughness
  • Crack free deposits
  • Minimal spatter
  • Smooth weld bead /High recovery
  • Ultra-low diffusible hydrogen level : 4ml /100gms weld metal
  • Best in class packaging - minimal transit damages

KEY SPECIFICATIONS :

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2  Elongation A5(%) Impact O V (J) -30°C  Welding Conditions
Super 7 E 7018 ≥450 540-620  ≥27 ≥80 AC/DC(+)
Superon 7018 E7018 ≥450 550-620 ≥28 ≥80 DC(+) : AC
SUPER OPTIMAL 7018 E 7018-H4 ≥450 550-620 ≥28 ≥90 AC;DC+
SUPER OPTIMAL 7018(SP)  E 7018-1 ≥450 510-610 ≥28 ≥80 J at -50°C DC(+) ; AC
SUPER OPTIMAL 7018S E 7018-1 H4 ≥450 550-620 ≥28 80 J at -50°C
SUPER OPTIMAL 7018SH4R E 7018-1 H4R ≥450 550-640 ≥28 80 at - 50°C
SUPER OPTIMAL 7018H4R E 7018 H4R ≥450 550-640 ≥28 80 at - 40°C
SUPER OPTIMAL 7018SW E7018 ≥450 550-650 ≥28 100

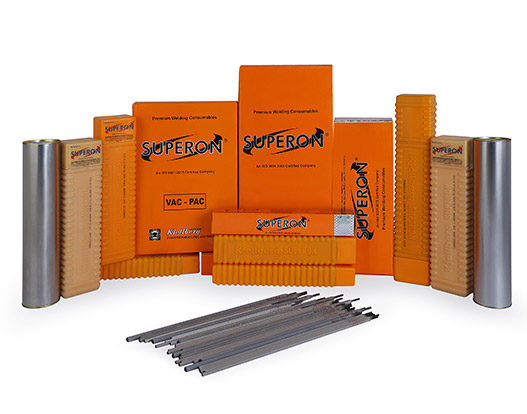

TYPE OF PACKING :

Normal Special Packing
Inner Packing Outer Packing
2 & 5Kg Vac Pack 10 & 20Kg 2Kg/5Kg Plastic Tube



OTHER PACKAGING INFORMATION :

For Plastic Tube pack, the outer pack weight will be same as vac & normal pack

for lbs packing :- 2kg :- 5 Lbs, and 5Kg :- 10Lbs, 10kg :- 20Lbs, 20kg :- 40Lbs

for 2kg = 2x5=10kg

for 5kg = 5x4=20kg
